Clinton County I-65/SR 28 Utilities

Clinton County I-65/SR 28 Utilities

by | Jan 18, 2022

Clinton County, IN

I-65/SR 28 Utilities

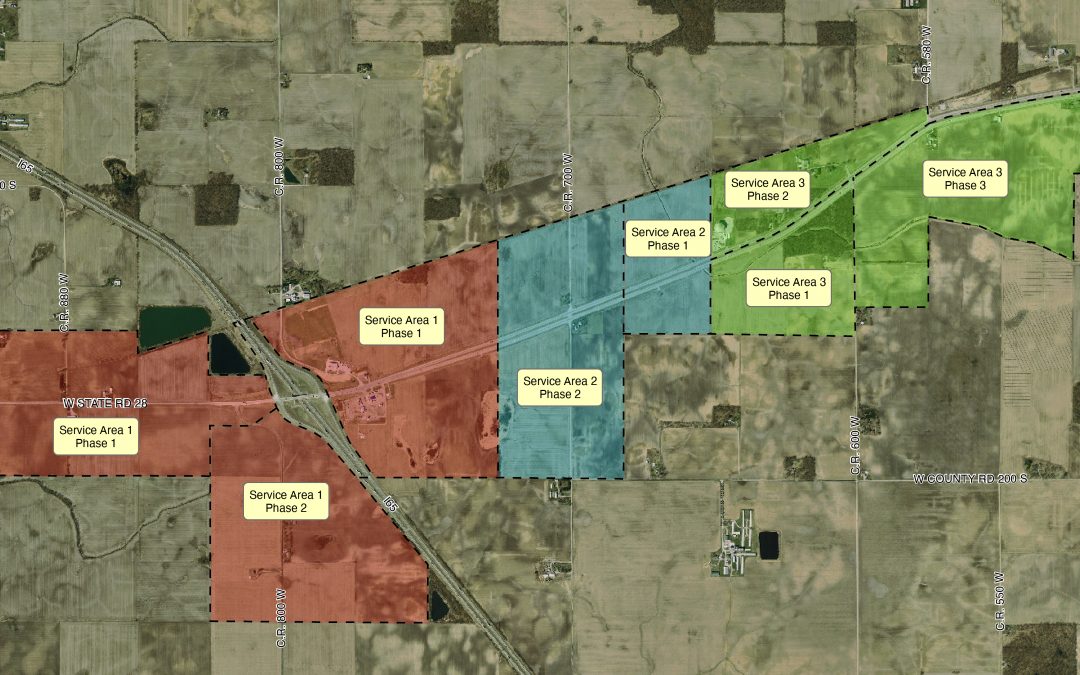

Based on economic development and utility planning studies completed by HWC, Clinton County retained HWC to complete design and construction phase services of the recommended project for wastewater and water utilities on I-65 and SR 28. This project included new wastewater collection and water supply facilities to serve existing and potential development near the I-65/SR 28 interchange, as well as unincorporated areas along the SR 28 corridor, west of the City of Frankfort and west of CR 450. No public water or wastewater facilities existed in the project area. The scope of work for the project included approximately 10,000’ of gravity sewers (ranging in size from 8” to 15”), two lift stations, approximately 4,000’ of dual 6” and 8” force mains, approximately 18,000’ of dual 8” and 12” force mains, approximately 24,000’ of 18” water main with associated hydrants and valves, four crossings of SR 28 via jack and bore, and an automatic flushing station to maintain water quality. The water and wastewater facilities were connected to the City of Frankfort’s systems and wastewater treatment for the wastewater collection system to be provided by the City of Frankfort. The project was completed in the summer of 2021 with an overall project cost of $15 million.
Water Resources

Hammond Edison Park

Hammond Edison Park

by | Jan 18, 2022

Hammond, IN

Edison Park

The City of Hammond tasked our design team with incorporating a variety of recreational components that would meet the needs of the surrounding neighborhoods. Unique elements include an agility course, artificial turf sports courts with backer board surrounds, and a “skatespot”. Additionally, the custom play surfacing design illustrates historic themes of Thomas Edison’s inventions into a vibrant, contemporary graphic. Now rejuvenated, Edison Park has become central to the community’s quality of life and sense of place.

Indiana Chapter of the American Society of Landscape Architects Award Winner

Landscape Architecture

Muncie Madison Street Stormwater

Muncie Madison Street Stormwater

by | Jan 18, 2022

Muncie, IN

Madison Street Stormwater

HWC provided planning, design, and project management services for the Madison Street Underpass Flooding Mitigation project in Muncie, Indiana.

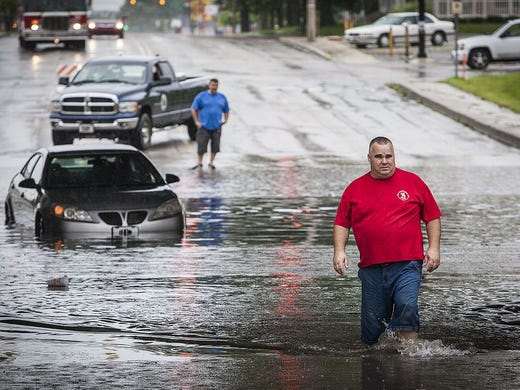

Utilizing conveyance upgrades in conjunction with stormwater pumping and storage, HWC addressed a critical drainage hazard in the heart of Muncie. Madison Street, the arterial north/south road through the City, crosses under three railroad lines, which creates a regional low-point that ties into one of the City’s CSO trunk-lines.

The study included hydrologic modeling of contributing watersheds, hydraulic modeling of several nearby CSO and separate storm sewer systems, and the development of numerous design alternatives to determine a solution to address persistent flooding and stormwater collection.

The recommended project provided capacity for the 100-year event and had an approximate cost of $6.7 million. The first phase of the project provides protection up to a 10-year event at an initial approximate cost of $4.0 million. Future phases, if implemented will bring the system up to the full 100-year capacity.

Improvements included two 13,000 GPM 250 Hp storm pumps, two 1,600 GPM 20 Hp force main pumps, a 750,000 gallon ground storage tank, 2,200’ of 16” force main directionally drilled, backup generator, wet well, control valves, and 500’ of gravity storm sewers to the station. The first phase was funded via the Guaranteed Savings/Guaranteed Maximum Price (GMAX) procurement method and Bowen Engineering was the selected savings provider/contractor, working closely with HWC’s staff during design.

Water Resources

Aurora 2nd Street

Aurora 2nd Street

by | Jan 18, 2022

Aurora, IN

2nd Street Rehabilitation

HWC replaced all sidewalks and curb and gutter in this downtown District of Aurora, Indiana. This project included minor drainage improvements, as well as the installation of pavement markings, new signage, and decorative crosswalks using pavers. ADA compliant curb ramps were also constructed and the pavement received a preventative maintenance mill and overlay of 1.5”. Coordination with business owners was critical as sidewalk was removed and replaced and as milling and paving operations ensued. HWC not only designed the project, but developed the bidding documents and conducted construction observation and administration. The project was completed at the end of 2018.



Transportation

Moores Hill Main Street

Moores Hill Main Street

by | Jan 18, 2022

Moores Hill, IN

Main Street Rehabilitation

HWC provided both crack sealing and a PM 1.5” mill and overlay in different sections of this Main Street Rehabilitation project. HWC also met with the Town and Contractor to identify specific areas that required full-depth patching.

Project improvements included reconstruction of curb and gutter and sidewalks, ADA curb ramps, minor drainage improvements to the storm sewer system, and reworking of sidewalks and curb ramps in front of the Town Hall to improve pedestrian and ADA access.

This project required design, bidding services, construction observation, and administration. Throughout the project, HWC kept the Town informed on the construction status and involved them when necessary to respond to the Contractor’s questions and concerns. The project was completed at the end of 2018.

Transportation
