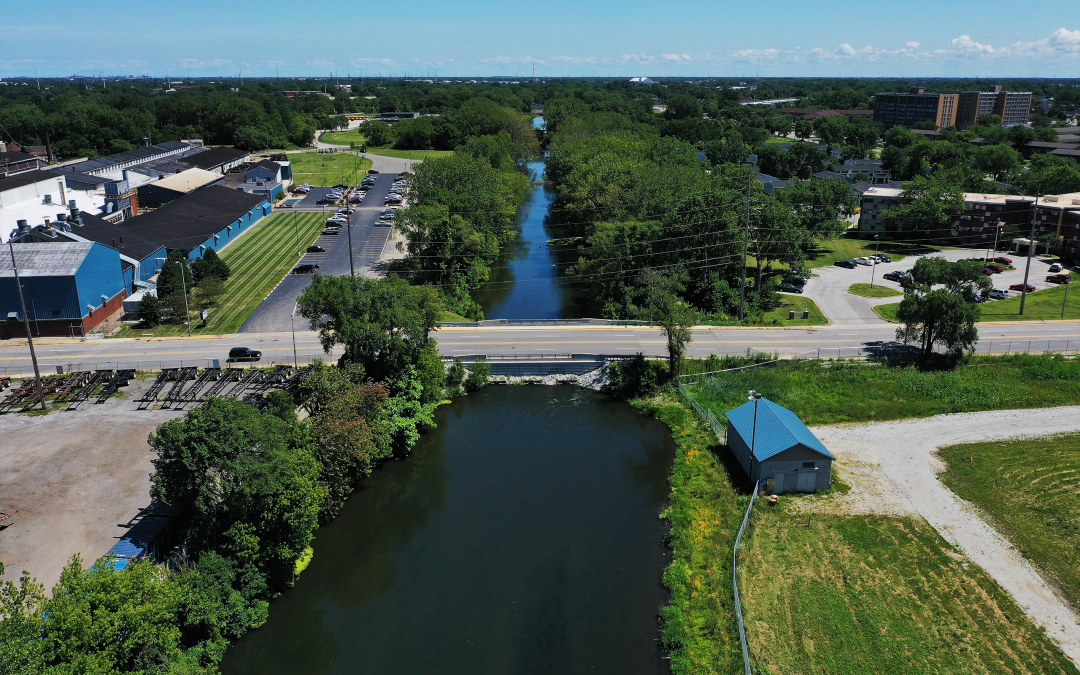

HWC worked with the City of Hammond on the Lake County Bridge #240 project providing construction inspection services.
The project scope included lining three pipes below the earth filled bridge, milling, and resurfacing.
Project additions included:

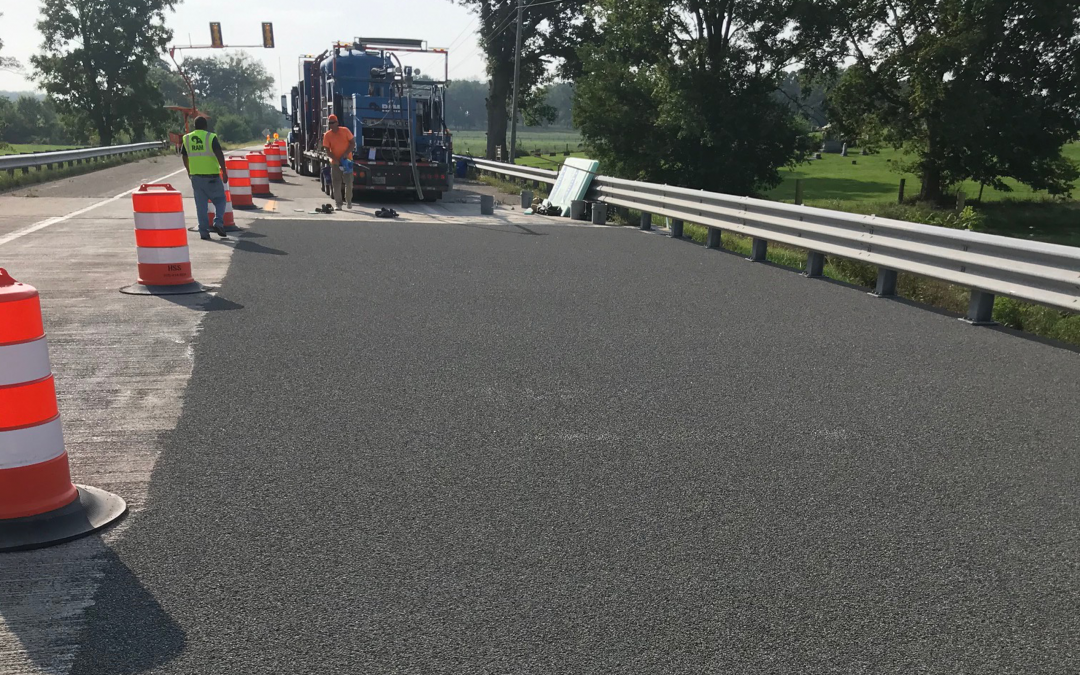

HWC provided construction inspection services for the thin deck polymeric overlay on SR 28 over Fall Branch, 1.73 miles west of US 41, and on SR 28 over Mud Run 1.52 miles west of SR 63.
The project consisted of deck cleaning and preparation on both bridges, including line removal, bead blasting, RPM removal, and hand grinding, with a few partial depth patches on Fall Branch Bridge. This was followed by linear grading and mulched seeding from the edge of the shoulder to the slope of the ditch on both bridges. Polymeric overlay material was applied to both bridges in 2 lifts for a total of approximately 904 square yards. A total of 94 linear feet of compressed 3” expansion joint was replaced and installed on the Mud Creek Bridge. Lastly, new striping was placed atop both structures.
This project was funded by INDOT and cost approximately $345,952.99 for both bridges.

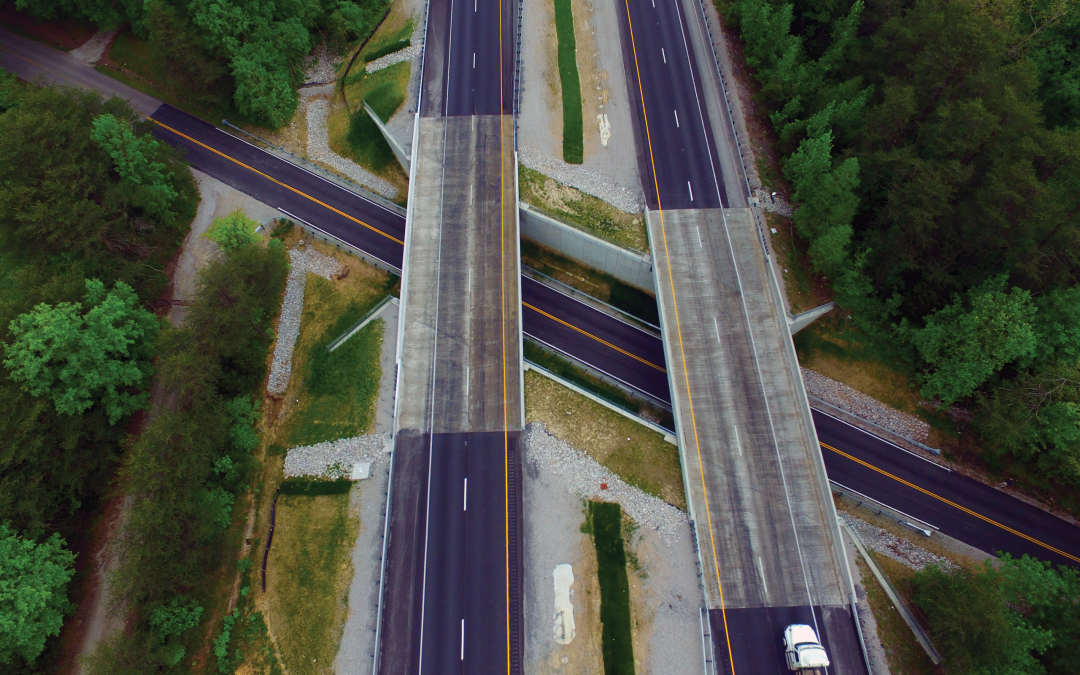

HWC provided full-time inspection services for the I–65 Bridge Replacement project in Clark County, Indiana. Project dynamics included demolition of the existing concrete beam bridges over a County road and construction of twin composite steel beam bridges in their place.
The bridges are single-span, steel beam bridges and the abutments on both sides of Brownstown Road were constructed using precast concrete panels to create Mechanically Stabilized Earth (MSE) retaining walls. Additional steel piles were driven in the median to accommodate the future construction of two additional lanes on I-65.
The project was divided into four phases in order to maintain two lanes of traffic on I-65 in both directions at all times. Brownstown Road was closed for a year during construction.
The $5 million project was fully funded by INDOT.

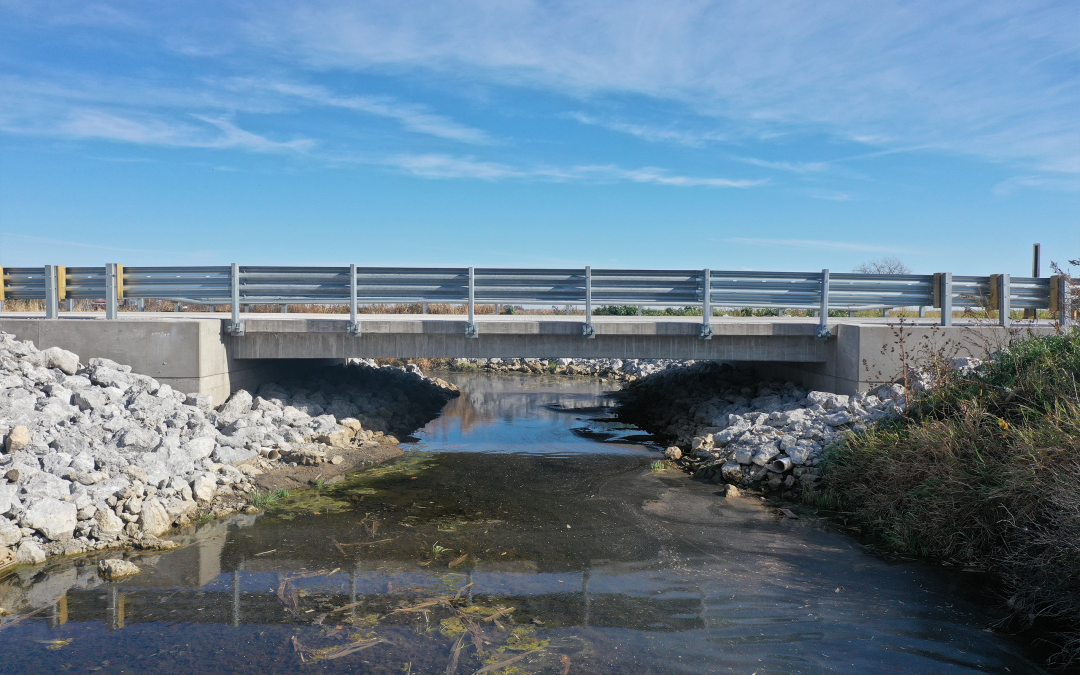

HWC was responsible for full-time inspection of the replacement of the Clay Street bridge #1147 in Lake County, Indiana.
The project included the demolition of the existing bridge and replacing it with a modern single span concrete box beam bridge. This project also included new concrete abutments, wingwalls, and approaches, as well as asphalt paving, guardrail installation, storm sewer, field drive entrances, and landscaping. An added emphasis was placed on scour protection for this project as the waterway beneath the bridge turns at a 90 degree angle. The project also utilized galvanized rebar in its bridge deck for increased life span of the structure.
The project was fully funded by Lake County. Project cost was approximately $562,000.00.

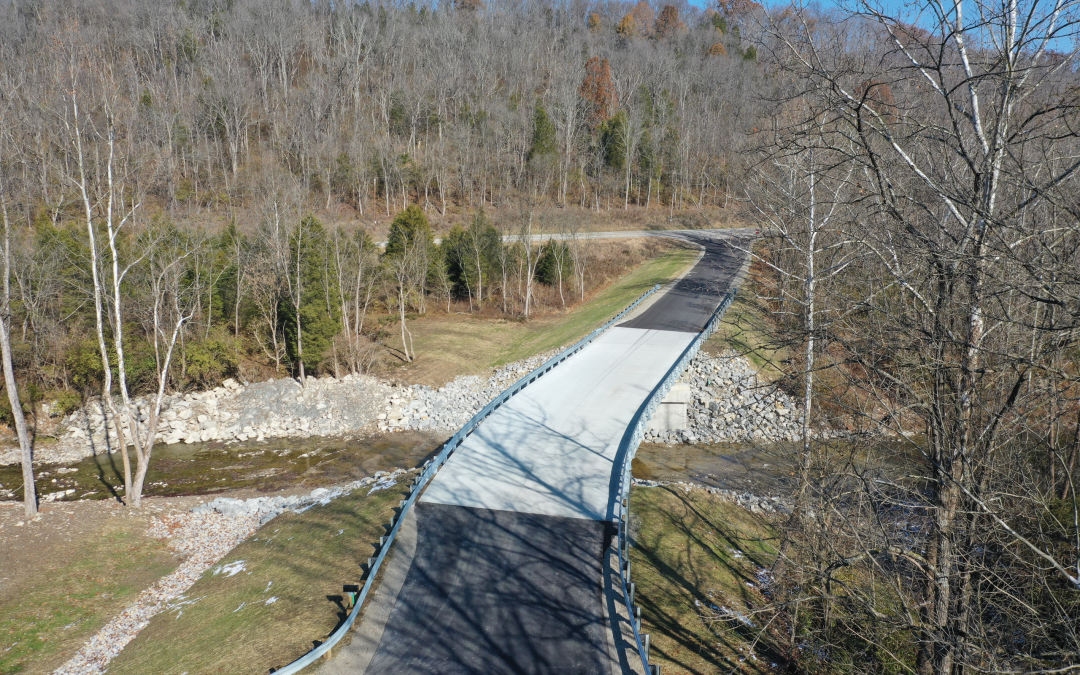

HWC provided part-time inspection for the replacement of Bridge #19.
This project was a two-span bridge project over Arnolds Creek on Stewart Ridge Road in Rising Sun, Indiana. This was a community crossing project that was inspected by HWC and constructed by McAllister Excavating.
The project consisted of constructing two reinforced concrete end bents and one pier along with concrete I beams and an 8” reinforced concrete bridge deck. This project included 400’ of new roadway that led into SR 262. Other project additions included stone shoulders, a new steel bridge rail, and new guardrail.
This project bid for $769,930.27 and was completed on time and under budget.
